Backend

Installation with Docker

Run the following command to install everything through docker.

The installation takes a bit longer on the first pass or on rebuild ...

# in main folder
$ docker compose up
# or
# rebuild the containers for a cleanup
$ docker compose up --build

Wait a little until your backend is up and running at http://localhost:4000/.

Installation without Docker

For the local installation you need a recent version of Node (>= v16.19.0). We are using v24.2.0 and therefore we recommend to use the same version (see some known problems with more recent node versions). You can use the node version manager nvm to switch between different local Node versions:

# install Node
$ cd backend
$ nvm install v24.2.0
$ nvm use v24.2.0

Install node dependencies with yarn:

# in main folder
$ cd backend
$ yarn install
# or just
$ yarn
# or just later on to use version of ".nvmrc" file
$ nvm use && yarn

Copy Environment Variables:

# in backend/
$ cp .env.template .env

Configure the new file according to your needs and your local setup. Make sure a local Neo4J instance is up and running.

Start the backend for development with:

# in backend/
$ yarn run dev

or start the backend in production environment with:

# in backend/
$ yarn run start

For e-mail delivery, please configure at least SMTP_HOST and SMTP_PORT in your .env configuration file.

Your backend is up and running at http://localhost:4000/ This will start the GraphQL service by default on localhost:4000 where you can issue GraphQL requests or access GraphQL Playground in the browser. More details about our GraphQL playground and how to use it with ocelot.social can be found here.

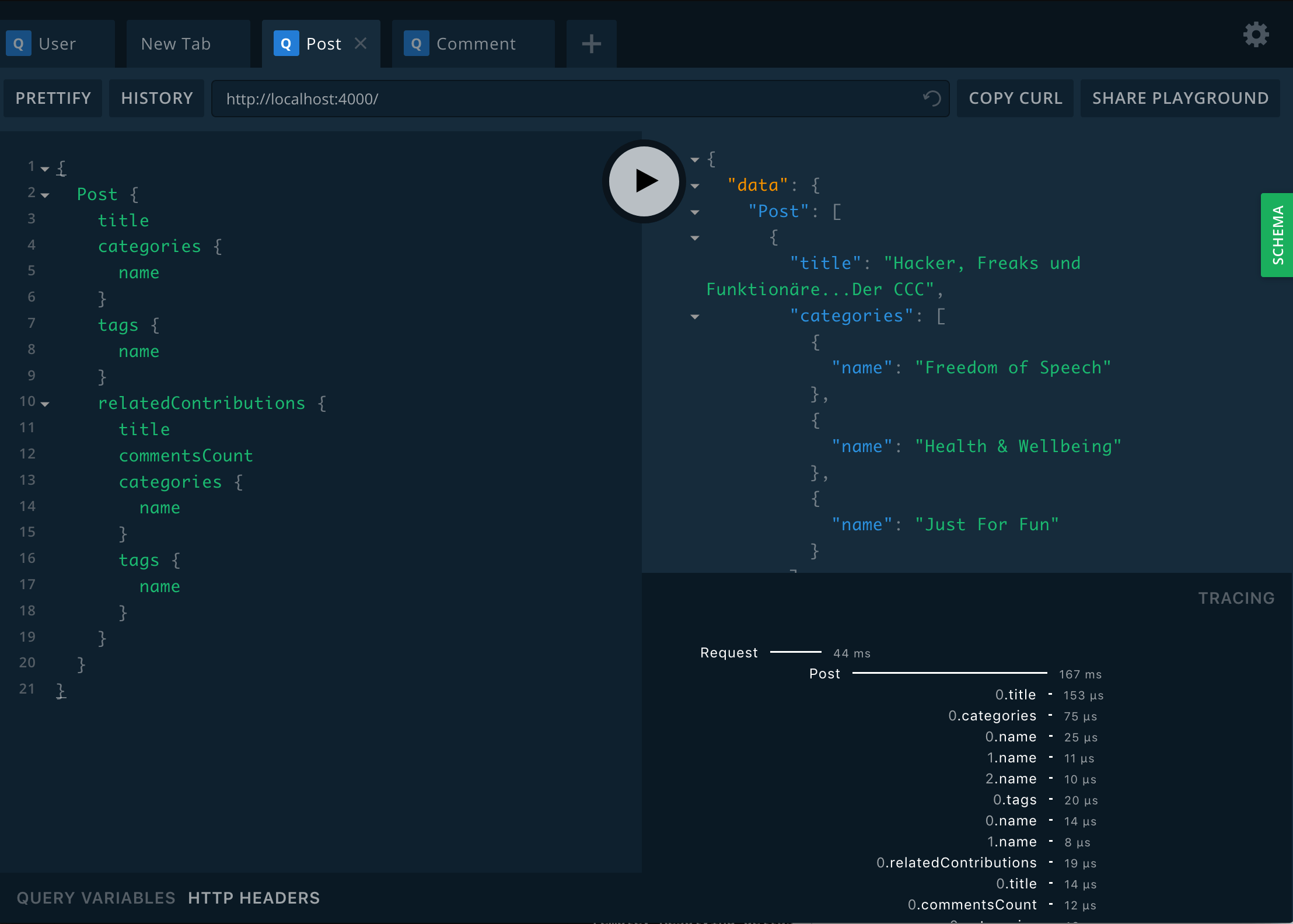

GraphQL Playground

Database

A fresh database needs to be initialized and migrated.

# in folder backend while database is running
yarn db:migrate init
# for docker environments:
docker exec ocelot-social-backend-1 yarn db:migrate init
# for docker production:
docker exec ocelot-social-backend-1 yarn prod:migrate init
# in backend with database running (In docker or local)
yarn db:migrate up

# for docker development:
docker exec ocelot-social-backend-1 yarn db:migrate up
# for docker production
docker exec ocelot-social-backend-1 yarn prod:migrate up

Optional Data

You can seed some optional data into the database.

To create the default admin admin@example.org with password 1234 use:

# in backend with database running (In docker or local)
yarn db:data:admin

When using CATEGORIES_ACTIVE=true you also want to seed the categories with:

# in backend with database running (In docker or local)
yarn db:data:categories

Branding Data

You might need to seed some branding specific data into the database.

To do so, run:

# in backend with database running (In docker or local)
yarn db:data:branding

# for docker
docker exec ocelot-social-backend-1 yarn db:data:branding

Seed Data

For a predefined set of test data you can seed the database with:

# in backend with database running (In docker or local)
yarn db:seed

# for docker
docker exec ocelot-social-backend-1 yarn db:seed

Reset Data

In order to reset the database you can run:

# in backend with database running (In docker or local)
yarn db:reset
# or deleting the migrations as well
yarn db:reset:withmigrations

# for docker
docker exec ocelot-social-backend-1 yarn db:reset
# or deleting the migrations as well
docker exec ocelot-social-backend-1 yarn db:reset:withmigrations
# you could also wipe out your neo4j database and delete all volumes with:
docker compose down -v

Note: This just deletes the data and not the constraints, hence you do not need to rerun yarn db:migrate init or yarn db:migrate up.

Data migrations

Although Neo4J is schema-less,you might find yourself in a situation in which you have to migrate your data e.g. because your data modeling has changed.

Generate a data migration file:

# in backend
$ yarn run db:migrate:create your_data_migration
# Edit the file in ./src/db/migrations/

# for docker
# in main folder while docker compose is running
$ docker compose exec ocelot-social-backend-1 yarn run db:migrate:create your_data_migration
# Edit the file in ./src/db/migrations/

To run the migration:

# in backend/ while database is running
$ yarn run db:migrate up

# for docker
# in main folder while docker compose is running
$ docker exec backend yarn run db:migrate up

Testing

Beware: We have no multiple database setup at the moment. We clean the database after each test, running the tests will wipe out all your data!

Run the unit tests:

# in backend/ while database is running
$ yarn run test

# for docker
# in main folder while docker compose is running
$ docker exec ocelot-social-backend-1 yarn run test

If the snapshots of the emails must be updated, you have to run the tests in docker! Otherwise the CI will fail.

# in main folder while docker compose is running
$ docker exec ocelot-social-backend-1 yarn run test -u src/emails/
